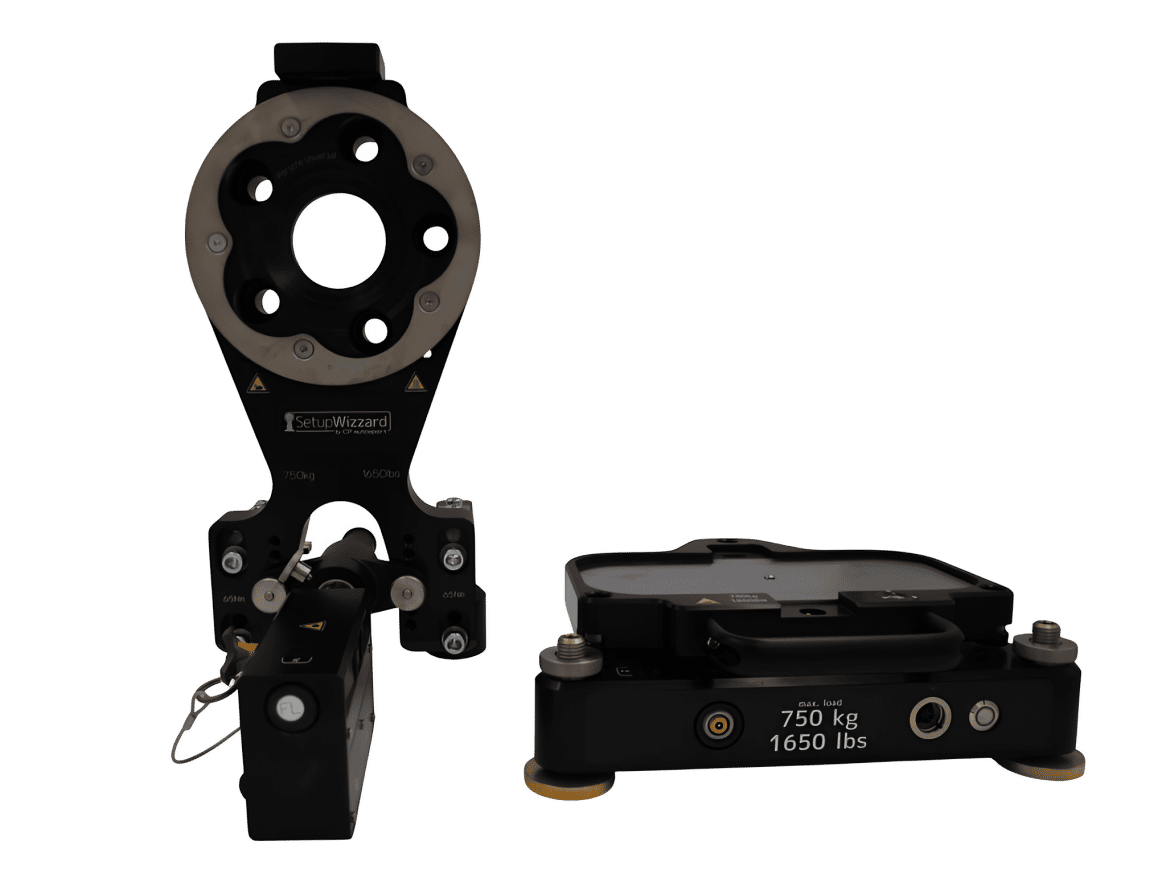

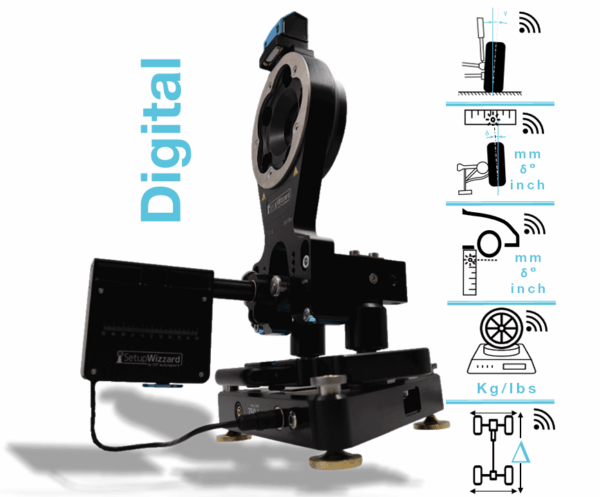

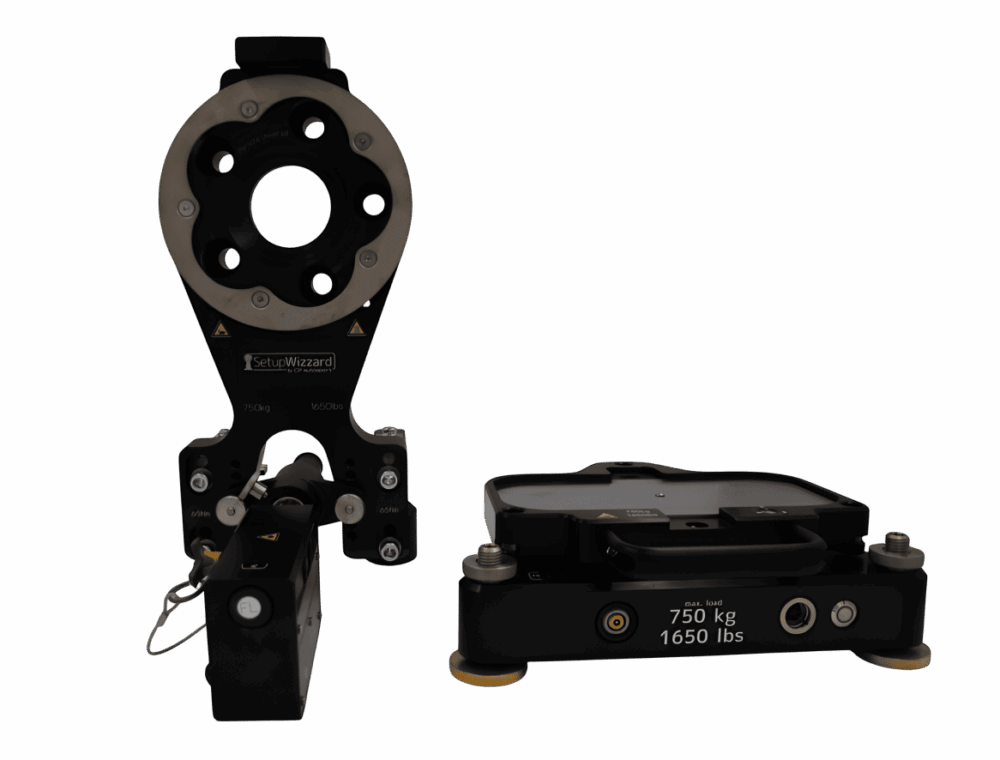

SetupWizzard ProLine

Highlights:

• Camber measurement digital
• Weight measurement digital
• Integrated precision laser for accurate toe measurments
• Track width compensation via telescoic ruler
• Plug & play accessories available
• Quick installation with comfortable access to all suspension components while measuring

Advantages:

• Digital camber & weight measurement
• Software integration and data analysis
• Local setup database
• Direct access to chassis components thanks to slim setup wheel design
• 750kg wheel load (Total 3000kg vehicle weight)
• Low friction movement for perfect relaxed suspension
• Securing plates to lock Setupwheels position on baseplate
• Plug and Play upgrades to level up your system

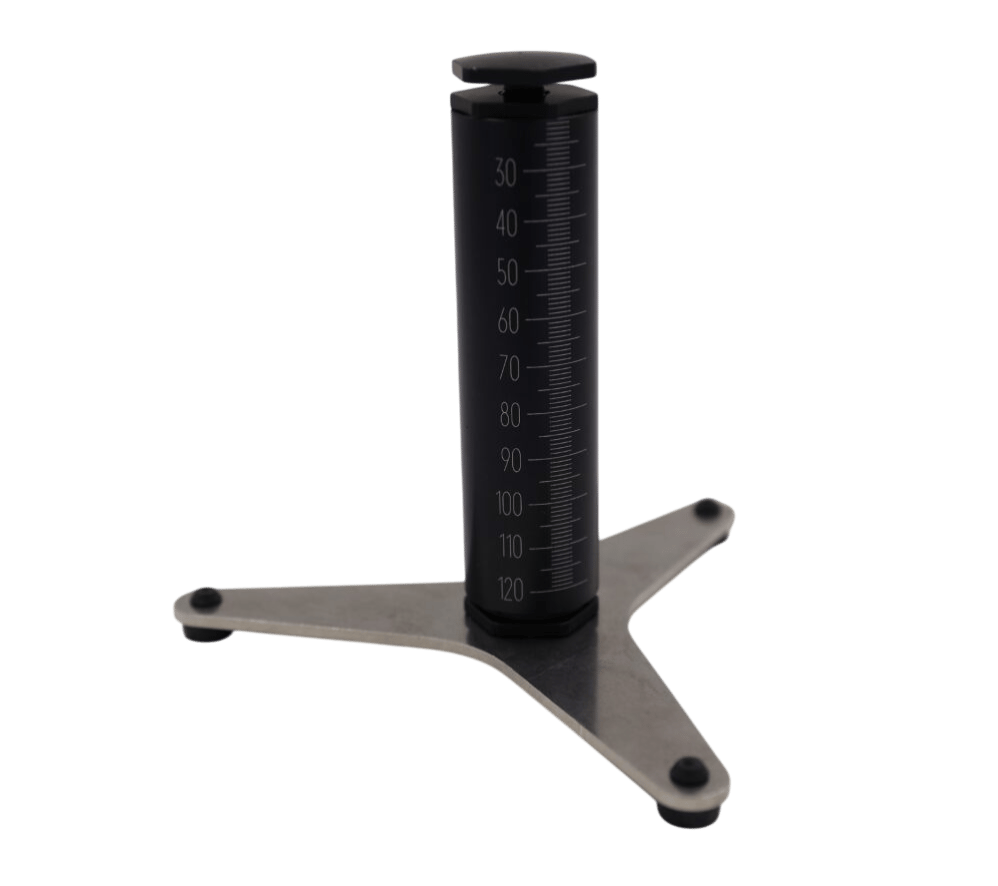

Height measurement:

1. Analog height measurement
2. Measuring range up to 120mm
3. Optional longer height measurement up to 200mm
4. Incl. small tip

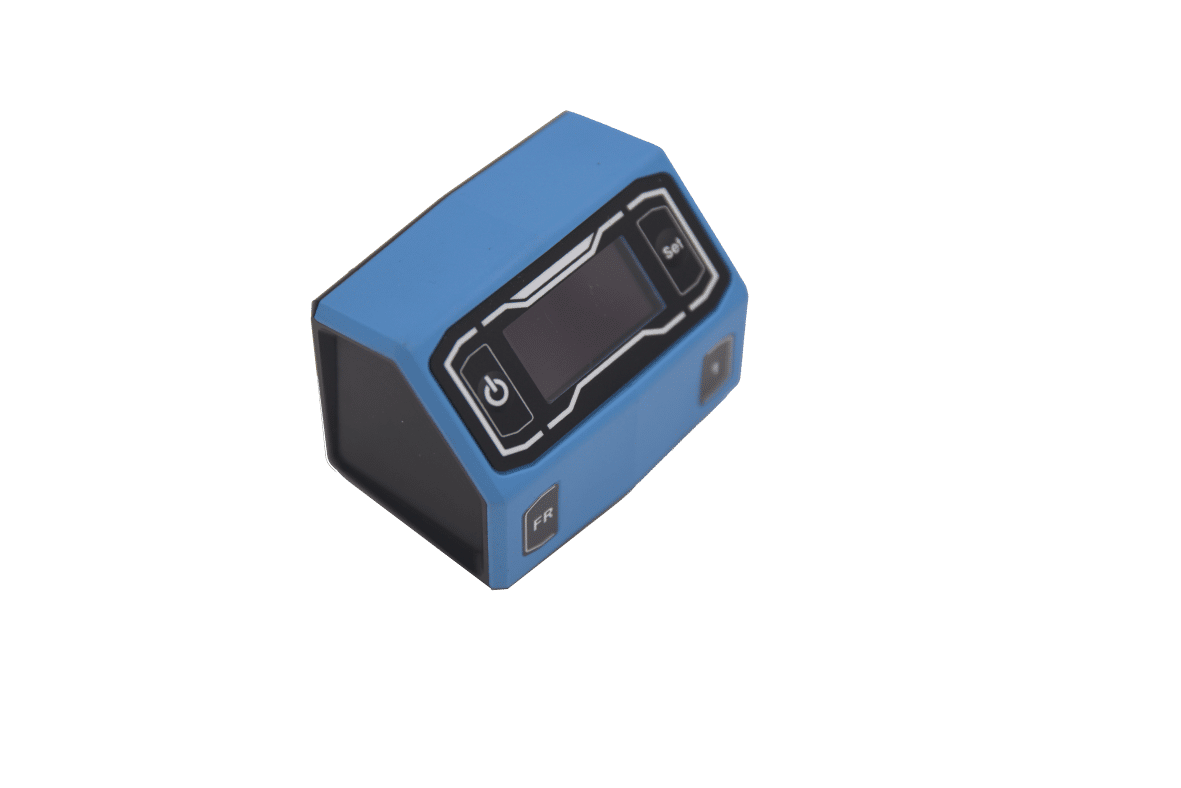

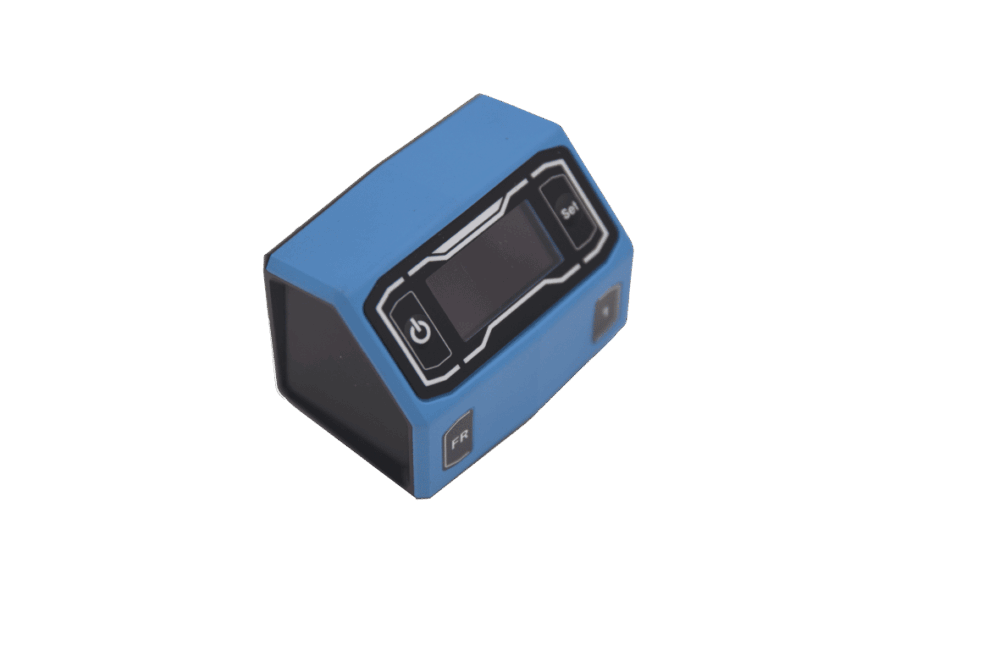

Digital Camber Sensor:

1. Camber sensor on top for improved accuracy
2. Software independent usable
3. Versatile for all kinds of angle measurment
4. Accuracy ± 0,1 °
5. Range ± 10 °
6. Lowest tolerance magnetic fixation
7. Bright LCD display
8. Display on/off via software (incognito mode)

Toe Laser:

1. Improved shaft guiding with lower tolerances
2. Thin laser for high accuracy
3. Connecting meachnism for analog track ruler
4. Improved solid toe laser housing

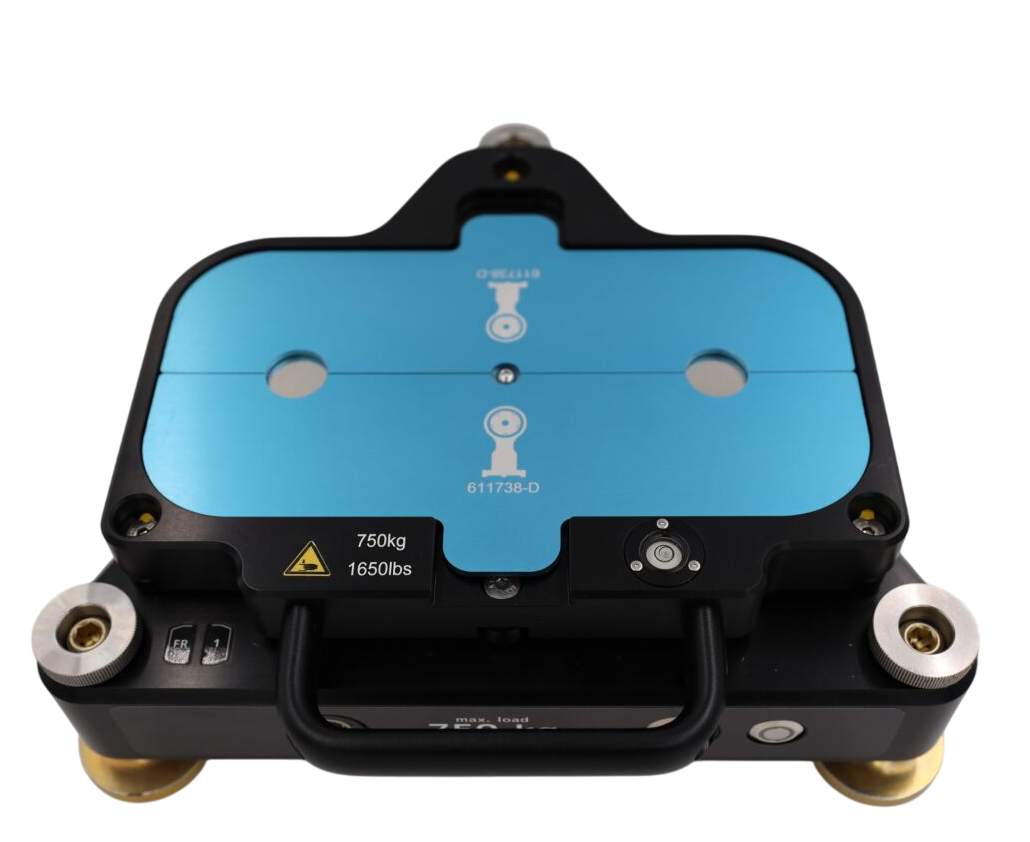

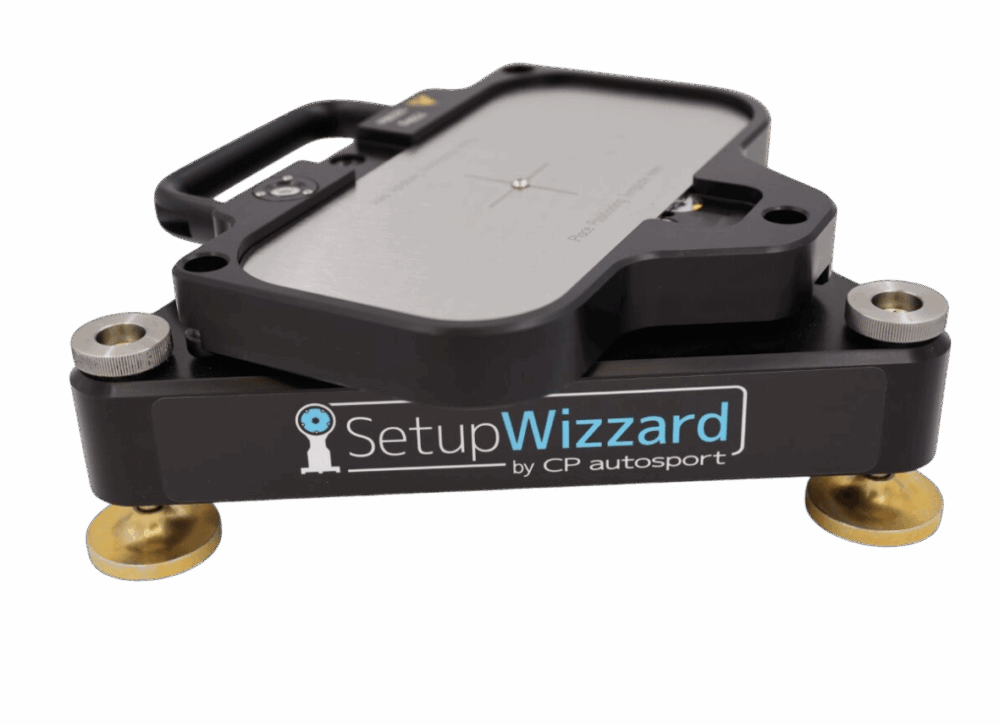

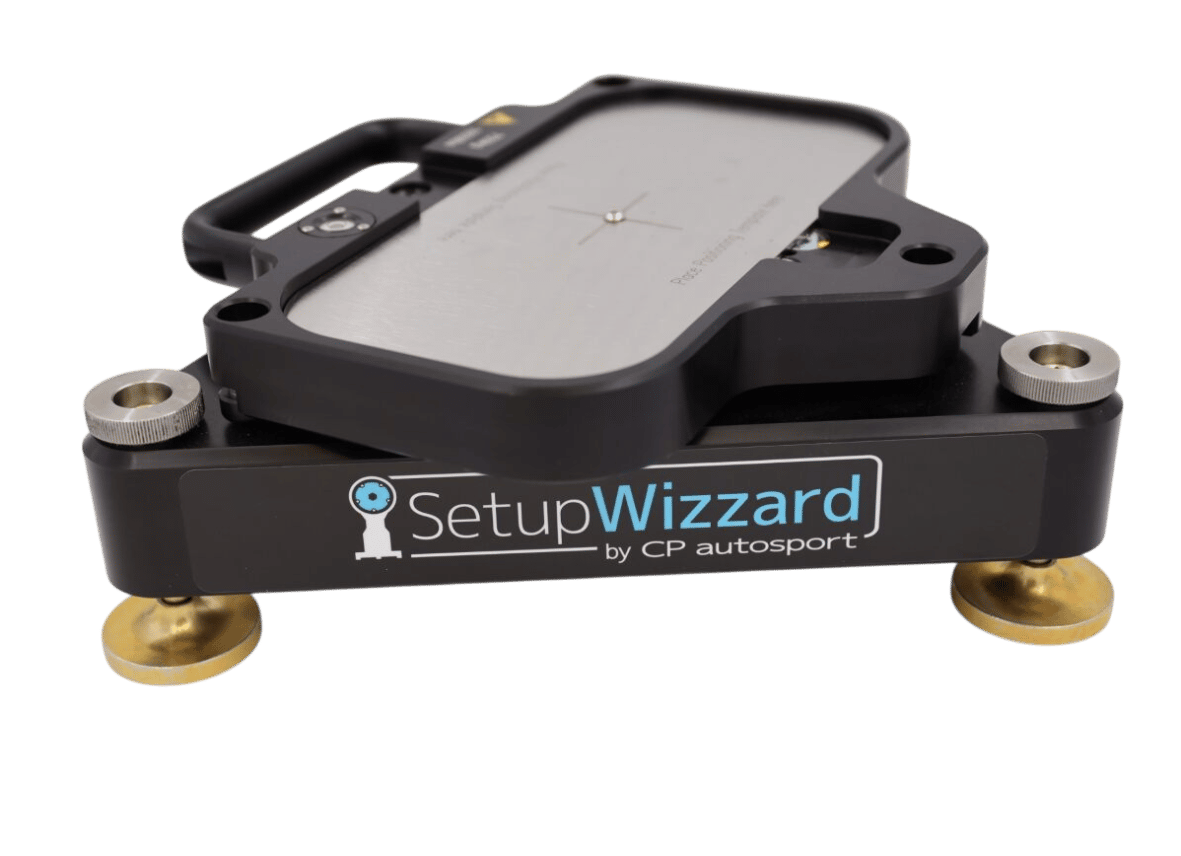

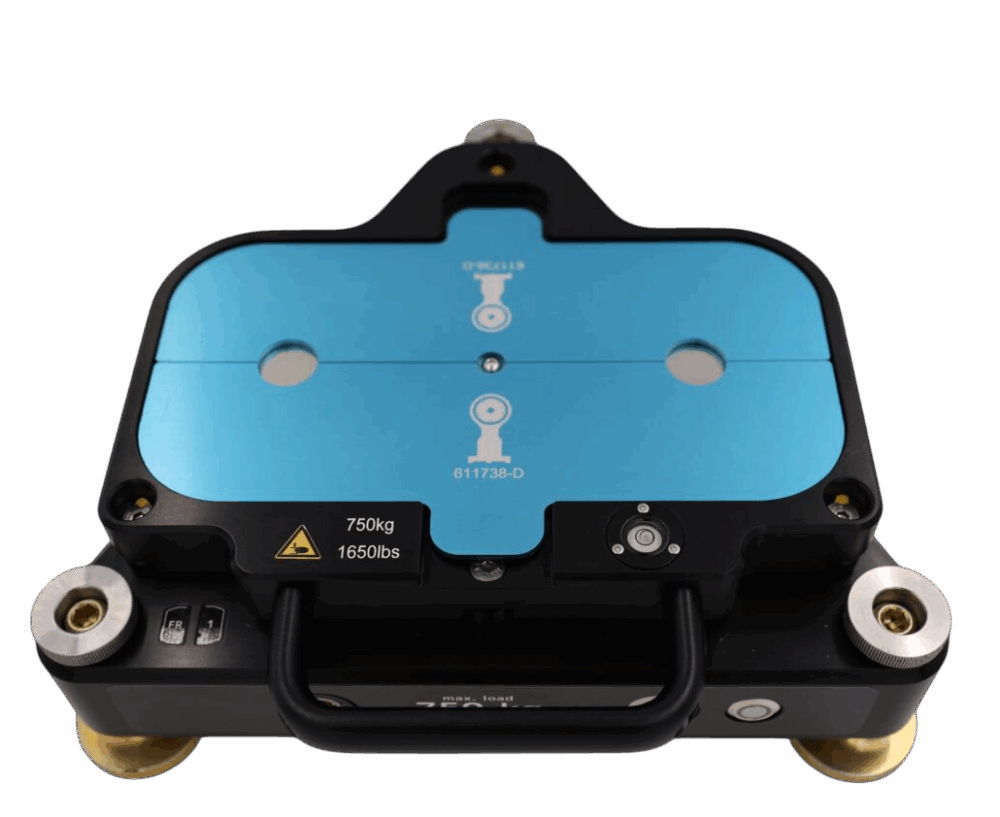

Digital Weight Scale:

1. Improved visibilty with 3 notch leveling sleeves
2. Fine adjustement platform leveling
3. FEM calculated for maximum stiffness
4. Magnetic charge connector
5. Load capacity 750kg/wheel
6. Power supply digital toe laser

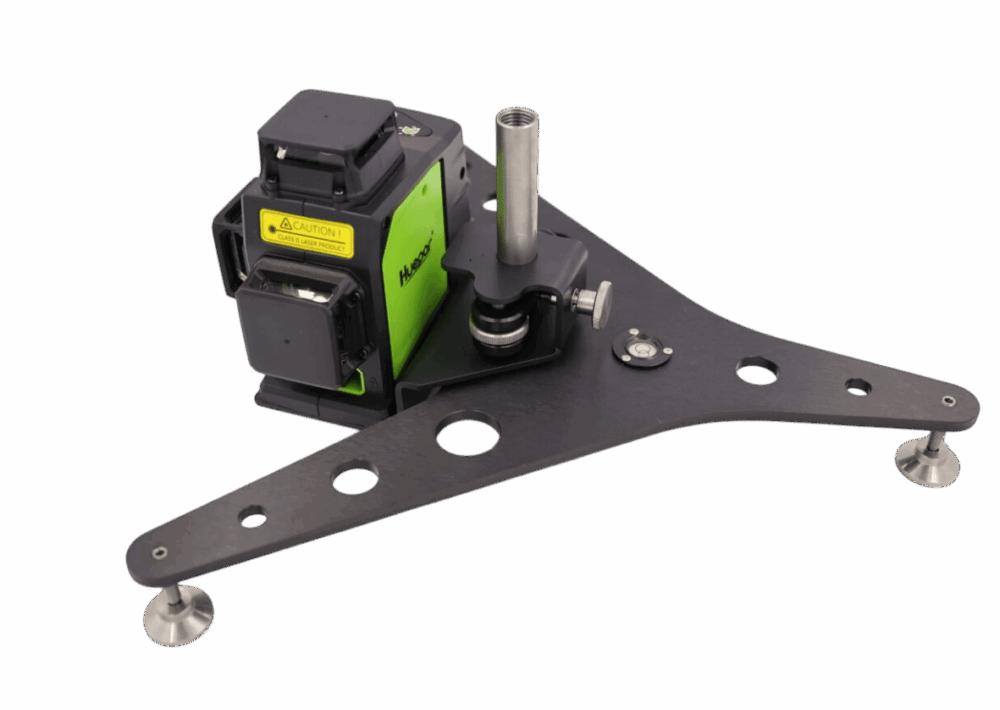

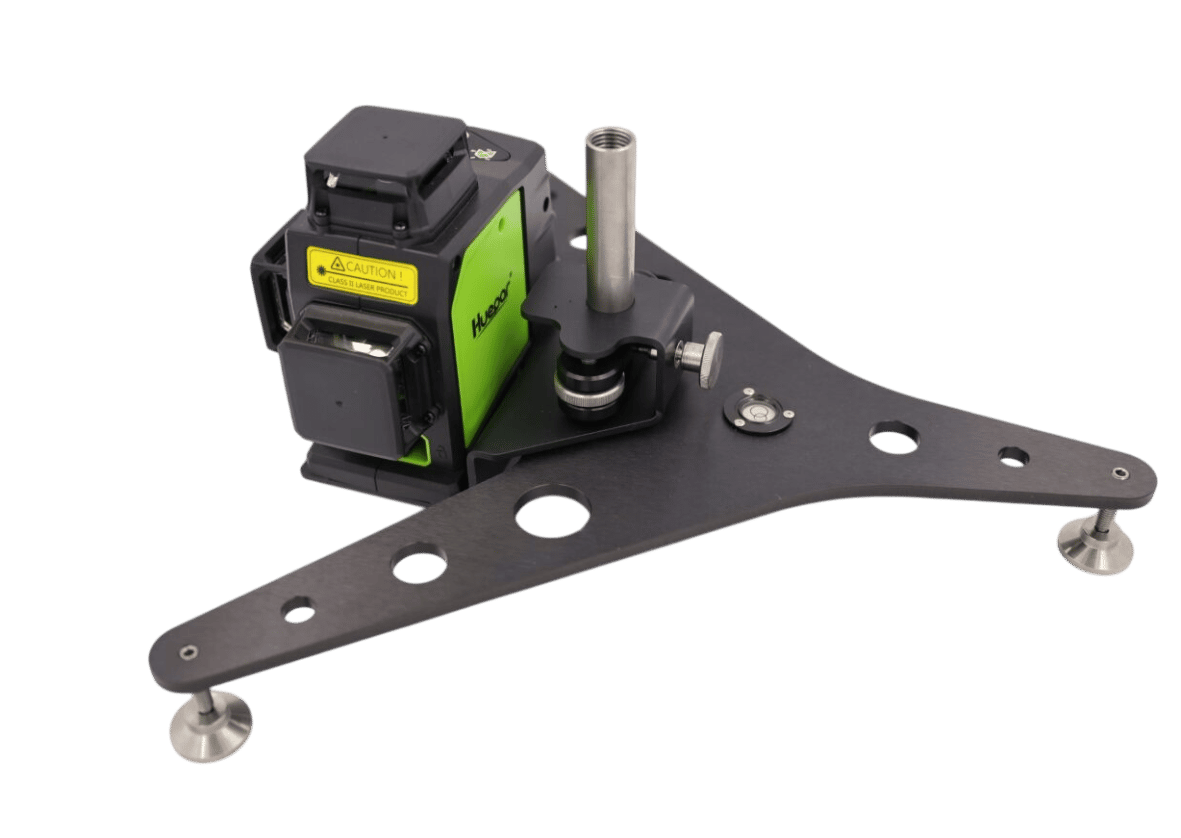

Leveling laser:

1. Better visibility in bright enviroments
2. Extra thin laser
3. Fine levelling screw
4. USB-C charge connector
5. Rechargeable batteries
6. Integrated spirit level
7. Improved stands

Flightcase:

1. Large casing for system and accessories
2. Improved hinge design
3. Ext. power supply and integrated charging module
4. Top loader with space for assembled setupwheel
5. Integrated sorting for clean and save transportation
6. Front lid with table function
7. Metal drawer for accessories
8. Additional drawer for accessories

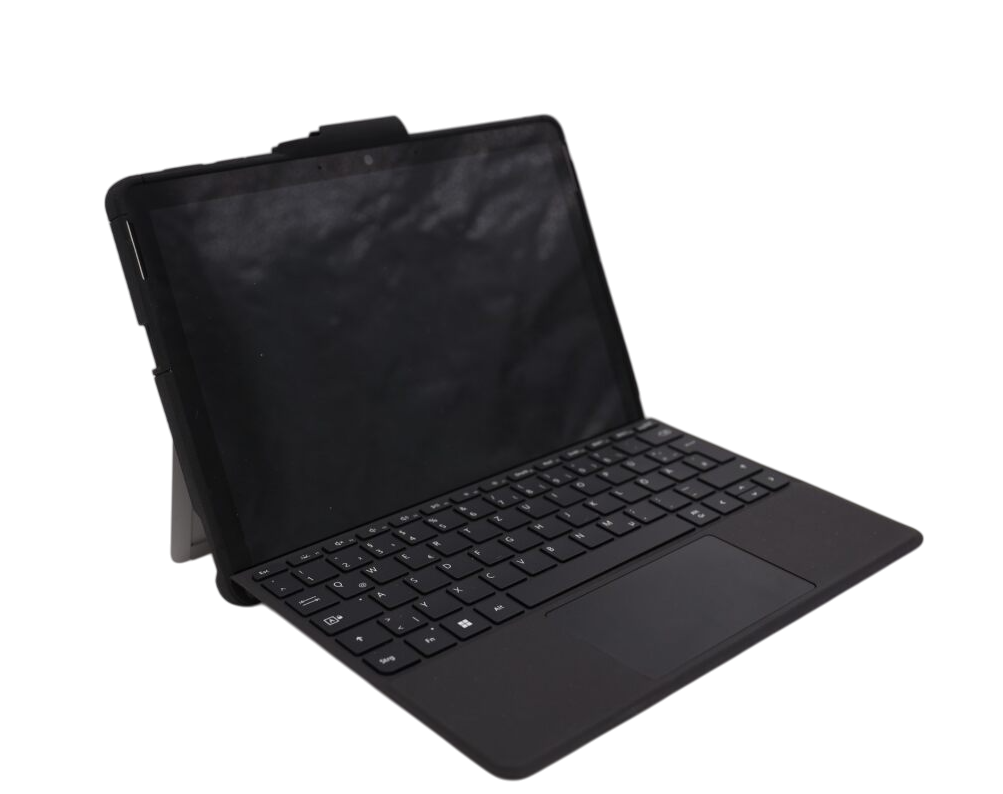

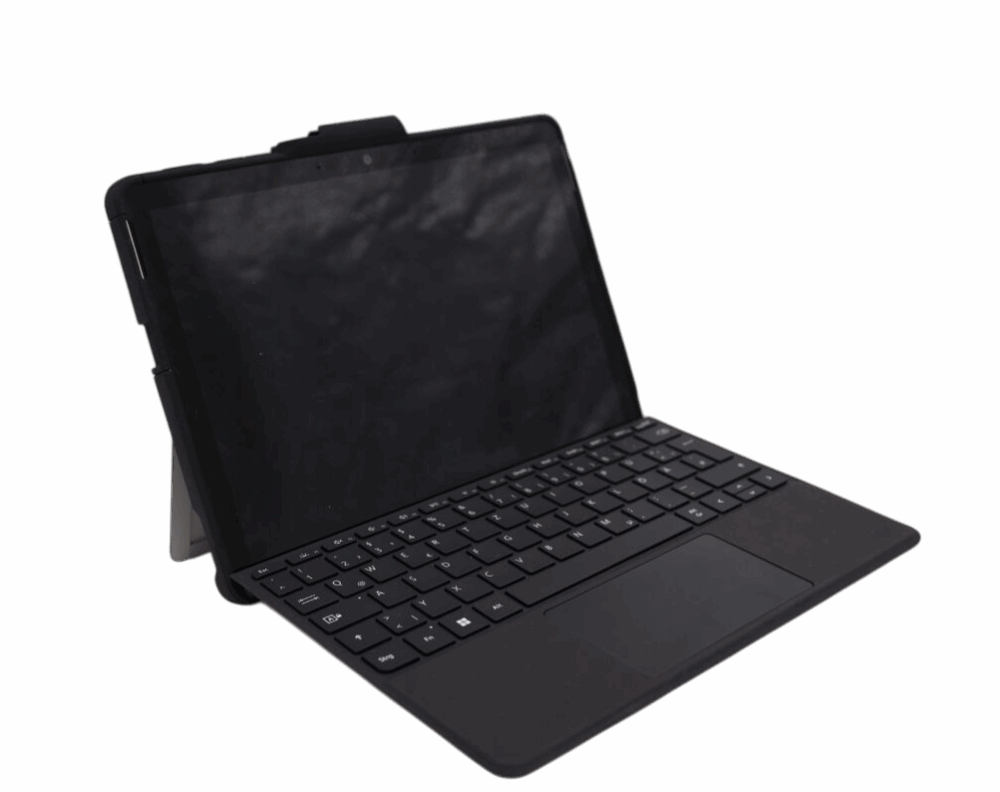

WizzardOS:

1. Direct measurment
2. Setup Database
3. Vehicle Database
4. Load & compare setups
5. Multi user function
6. User rights management
7. Calibration & offset management
8. Tolerance settings
9. Device connection & pairing

Applications:

The SetupWizzard is the most precise and most versatile wheel alignment system. Thanks to multiple different wheel adapters it fits almost every race and road car on the market

Beeing used at the track or in the workshop, the SetupWizzard always delivers an experience of high professional equipment.

Thanks to a great variance of accessories all kind of vehicle categories can be measured:

• GT race cars
• LMDh / LMH race cars
• Rallye
• Hypercars
• Sportscars
• … and many more
